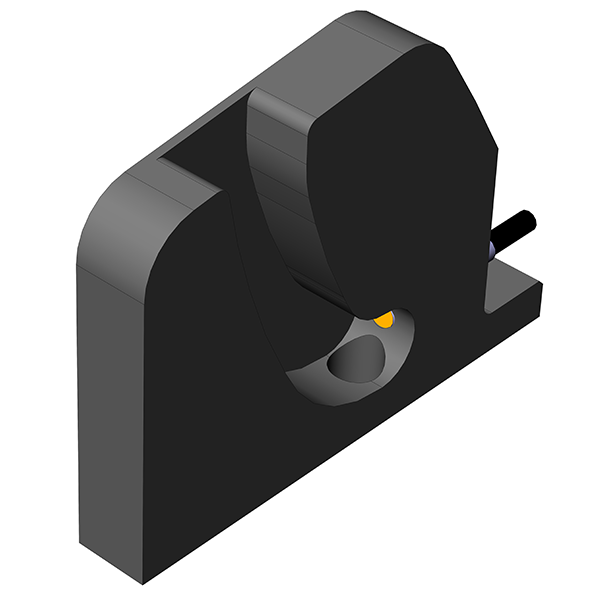

Fixture Switch, Inductive, MA3xxx Series

Elevate your fixture base functionality with our Inductive Fixture Switch, specifically designed for Ingun MA3xxx series fixture bases. This simple yet effective inductive switch is engineered to detect the closure of the pressure frame, ensuring precision and reliability in your operations.

Includes:
- IFM IY5052 Inductive Sensor
- Front Pressure Frame Bracket with threaded hole for sensor installation

Electrical Characteristics:
- Input voltage: 10-30VDC
- Output: PNP, Normally Closed

Note: This sensor follows DIN wiring specifications, not SAE. The sensor should be wired as follows:

Brown: Vsupply
Black: Vswitch
Blue: GND
